Laser Engraving & Cutting & Drilling System

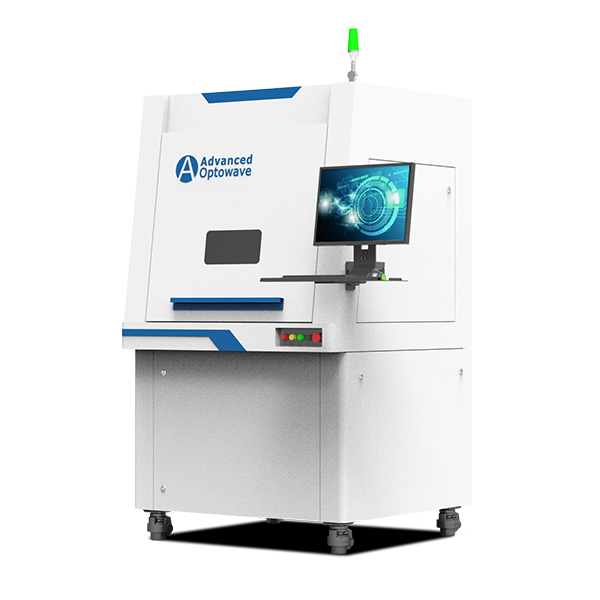

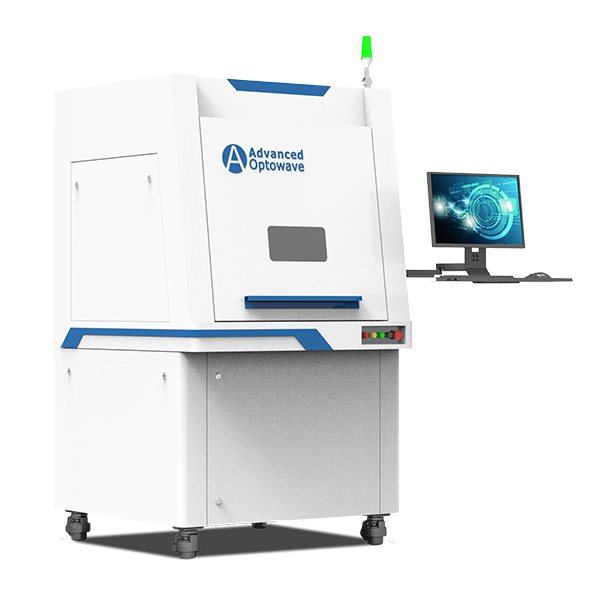

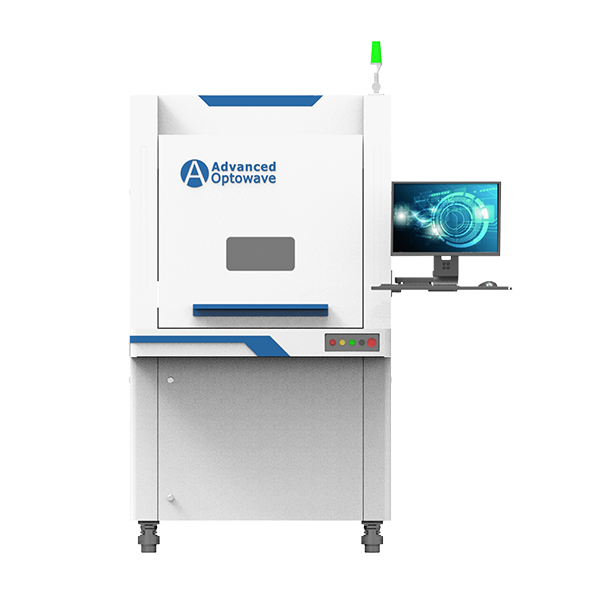

AOFemto 3000

The AOFemto 3000 laser processing system features a range of laser types and a multi-axis motion platform, making it ideal for laser engraving, cutting, and drilling applications

Our proprietary laser processing software, along with customized tooling and fixtures, provides tailored laser solutions to meet your specific needs. This system is widely used for precision machining of materials such as stainless steel, nickel-titanium, cobalt-chromium, and polymers

Our Advantage

Compatible with various types of ultra fast lasers

Open workspace compatible with multi-axis configuration

Customized fixture and tooling

Customizable loading and unloading positions

Integrated CCD positioning and barcode reading function

Integrated software compatible with end users's software

Application

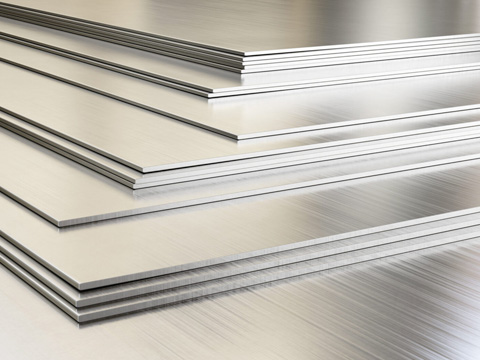

  • Laser Flat Cutting_Nickel-Titanium Sheets

    Laser Flat Cutting_Nickel-Titanium Sheets

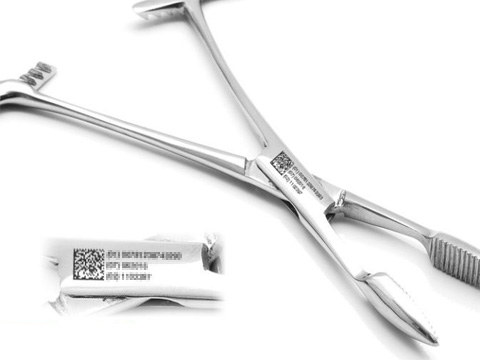

  • Laser Marking_Surgical Forceps

    Laser Marking_Surgical Forceps

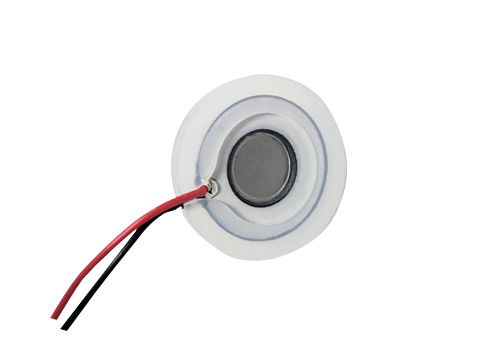

  • Laser Drilling_Nebulizer Plates

    Laser Drilling_Nebulizer Plates

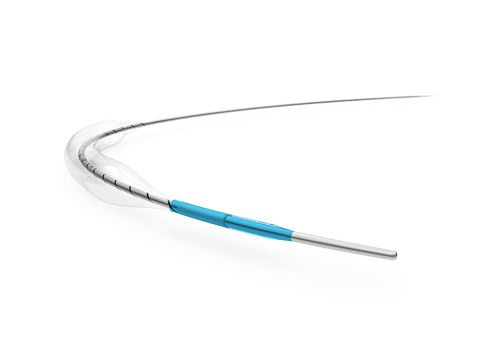

  • Laser Drilling_Balloon Catheter

    Laser Drilling_Balloon Catheter

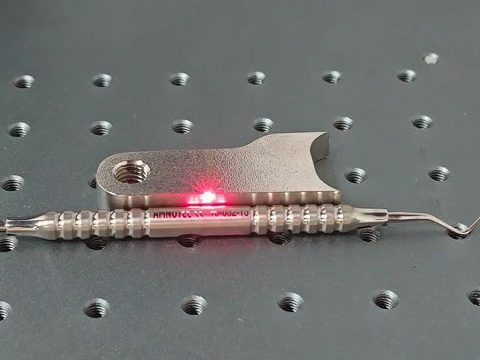

  • Laser Marking_Surgical instruments

    Laser Marking_Surgical instruments

Data Sheets

Laser sourceFemtosecond laserPicosecond laser
Laser wavelength1030nm515nm1064nm532nm355nm
Laser power5w~20w2w~10w10w~60w5w~30w2w~20w
Pulse width<800fs<12ps
Frequency100KHz~1000KHz
Maximum processing area300mm×300mm
Galvoscanner range50mm×50mm~300mm×300mm
Positioning methodCoaxial visual positioning
System processing accuracy±20um
CCD positioning accuracy±15um
XY axes Repeatability accuracy±0.002mm
Z-axsi positioning accuracy±0.005mm
Air pressure0.5MPa~0.7MPa
Power supply220V single-phase/ 50Hz
Cooling methodsWater cooled
Maximum outer dimension1200mm×1700mm×2100mm
Stage weight750KG
Ambient temperature23℃±2℃
Ambient humidity<70% RH without condensation



Markets

Paithon's Wide Range of Components and Equipment Include

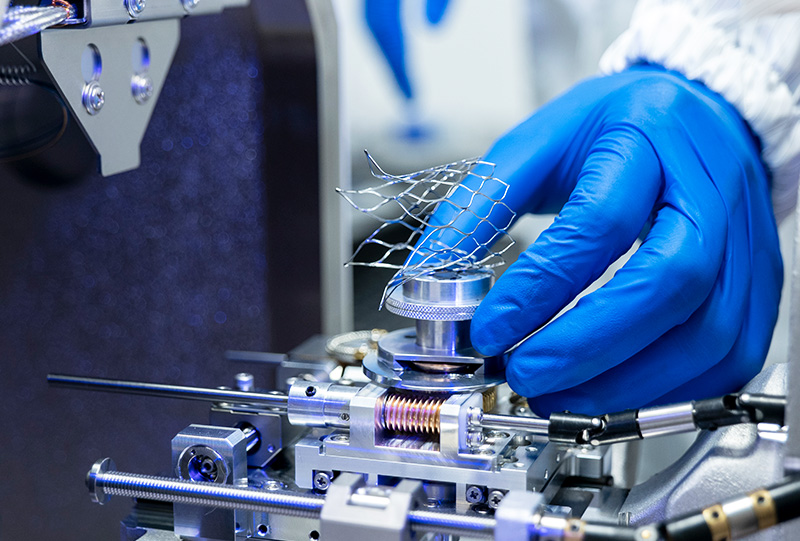

Thrombectomy stent

Intracranial expandable stent

Coil embolization

Microcatheter

Microguidewire

Aspiration catheter

Dilatation balloon catheter

Carotid artery stent

Vertebral artery stent

Vena cava filter

Coronary stents

Balloon

Bare metal stent

Drug-coated stent

Biodegradable stent

Drug-coated balloon

Balloon dilatation catheter

Heart valve

Occluder

Atomization piece

3D imaging and mapping catheter

Ablation catheter

Puncture needle

Biopsy forcep
