Laser Tube Cutting System

AOFemto 4000

The AOFemto 4000 is a precision tube cutting system, designed as a fully automated multi-axis platform for tube processing, It offers options for infrared, green light femtosecond lasers, and fiber lasers, enabling fine machining of any polymer or metal material. This system is ideal for high precision medical devices, including stents, hypotubes, catheters, and imaging coils.

Our Advantage

2-5 axis system optional

Coaxial and off-axis monitoring

Customized fixture and toolings

Both dry cutting and wet cutting available

Dedicated integrated software

Both femtosecond lasers and fiber lasers available

Visual monitoring, enabling real-time observation of the processing procedure

Application

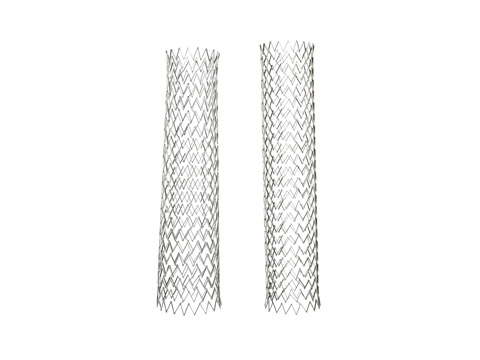

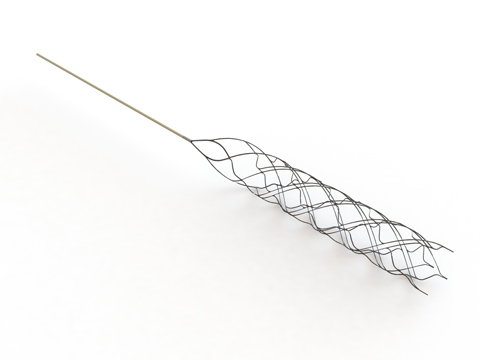

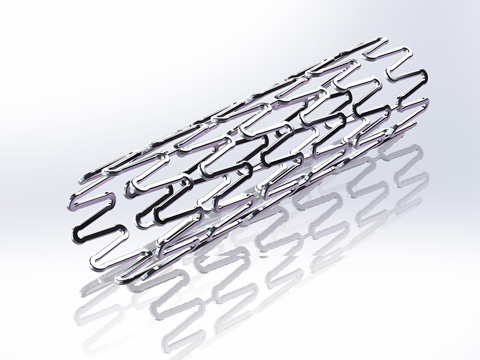

  • Thrombectomy Stents

    Thrombectomy Stents

  • Valve Stents

    Valve Stents

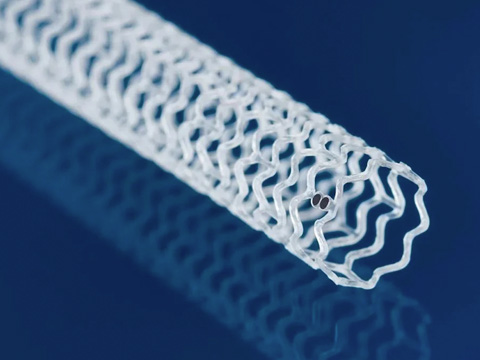

  • Biodegradable Stents

    Biodegradable Stents

  • Maging Coils

    Maging Coils

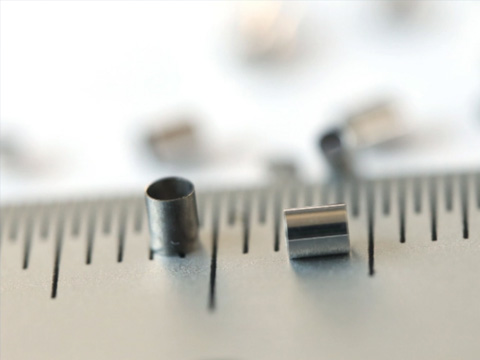

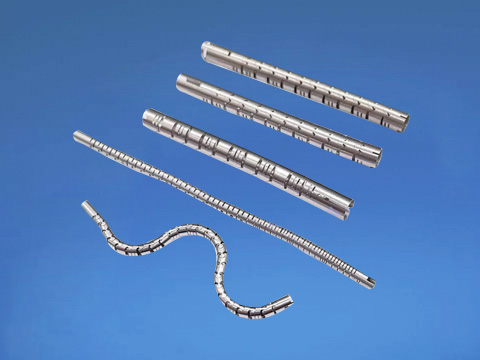

  • Hypotubes

    Hypotubes

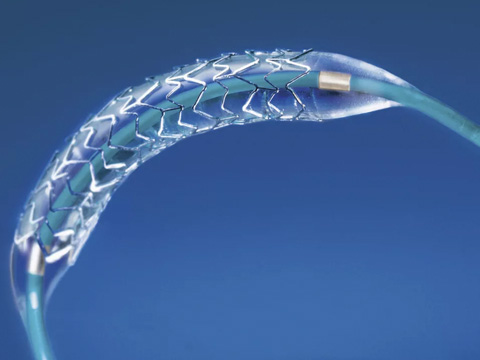

  • Vertebral Stents

    Vertebral Stents

  • Vertebral Artery Stents

    Vertebral Artery Stents

  • Intracranial Stents

    Intracranial Stents

Data Sheets

AOFemto-FL-4000


Processing performanceMaximum travel speed  2m/s(x-axis);300rpm(θ -axis)
Positioning accuracy± 1μm(X -axis);±5arc sec(θ -axis);± 2μm(Y -axis);7μm(Z -axis)
Repeatability accuracy± 0.5μm(X -axis);±3arc sec(θ -axis);± 1 μm(Y -axis);±5μm(Z -axis)
Processable WorkpieceTube material typeImplantable metal and polymer tubing
Tube diameter0.5~16mm/16~30mm
Tube length<2m
Processing rangeCustomizable
Tube thickness 0.02mm~0.6mm
Flat machining Customizable
Laser SourceLaser typeFiber laser
Wavelength 1030nm~1070nm±10nm
Power 200W & 300W & 500W optional
File typeCompatible file typeDXF、 DWG、 IGES、Gerber、 EPS、 PDF、 AI、PLT、 Trumpf-GEO
UtilitiesPower supply Three-phase 380VAC±10%、50/60Hz、40A、3L+N+PE five-wire system
Ambient temperature23℃±2℃
Compressed air pressure 0.5Mpa~0.7Mpa
Ambient humidity <70%RH without condensation
Process gas pressure Nitrogen gas, Argon gas,
Floor load-bearing capacity 1000Kg/m2
Dimensions and weight Maximum outer dimensions1775mm × 1300mm × 1840mm
Weight 2000Kg

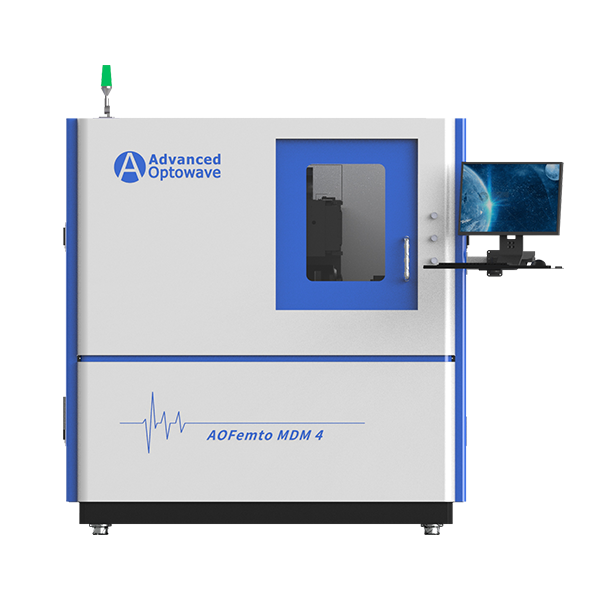

AOFemto MDM 4000


ProcessingMaximum travel speed2m/s(x-axis);300rpm(θ -axis)
Positioning accuracy± 1μm(X -axis);±5arc sec(θ -axis);± 2μm(Y -axis);7μm(Z -axis)
Repeatability accuracy± 0.5μm(X -axis);±3arc sec(θ -axis);± 1 μm(Y -axis);±5μm(Z -axis)
performance
Workpiece
Tube material typeImplantable metal and polymer tubing
Tube diameter0.5~16mm/16~30mm
Tube length<2m
Processing rangeCustomizable
Tube thickness0.02mm~0.6mm
Flat machiningCustomizable
Laser SourceLaser typeDual-wavelength femtosecond laser optional
Frequency range100KHz~1000KHz
Wavelength1030nm/515nm
Beam qualityM2 <1.3
Maximum power20w/10w
Pulse width<800fs
File typeCompatible file typeDXF、 DWG、 IGES、Gerber、 EPS、 PDF、 AI、PLT、 Trumpf-GEO
UtilitiesPower supplyThree-phase 380VAC±10%、50/60Hz、40A、3L+N+PE five-wire system
Ambient temperature23℃±2℃
Compressed air pressure0.5Mpa~0.7Mpa
Ambient humidity<70%RH without condensation
Process gas pressureNitrogen gas, Argon gas, <1.5 Mpa
Floor load-bearing capacity1000Kg/m2
Dimensions
and weight
Maximum outer dimensions1775mm × 1300mm × 1840mm
Weight2000Kg



Markets

Paithon's Wide Range of Components and Equipment Include

Thrombectomy stent

Intracranial expandable stent

Coil embolization

Microcatheter

Microguidewire

Aspiration catheter

Dilatation balloon catheter

Carotid artery stent

Vertebral artery stent

Vena cava filter

Coronary stents

Balloon

Bare metal stent

Drug-coated stent

Biodegradable stent

Drug-coated balloon

Balloon dilatation catheter

Heart valve

Occluder

Atomization piece

3D imaging and mapping catheter

Ablation catheter

Puncture needle

Biopsy forcep
