Our ultrafast lasers, available in multiple wavelengths and equipped with precise beam control modules and a five-axis motion system, enable micro-level drilling on a wide range of medical materials. For devices with complex geometries and irregular sizes, such as balloons and multi-lumen tubes, our self-developed multi-axis laser drilling system offers efficient, rapid drilling of small holes while preserving product integrity and minimizing heat impact.
Working on a wide range of materials: Metal materials such as nitinol, stainless steel, cobalt-chromium, and platinum-iridium. Polymers including PI, PEBAX, PLLA, PLGA and many others.
PEEK tubingBalloons
Atomization piecesMulti-lumen tubes
Braided cathetersCoil spring tubes and more
Lasers: Infrared, green, and ultraviolet ultrafast lasers; solid-state lasers, fiber lasers.
Micron-scale holes as small as 5 microns in diameter.
Thickness: ＜0.5mm
Drilled hole tolerance: ±1μm
Maximum depth to diameter ratio of 10: 1
Working on a wide range of materials: Metal materials such as nitinol, stainless steel, cobalt-chromium, and platinum-iridium. Polymers including PI, PEBAX, PLLA, PLGA and many others.
PEEK tubingBalloons
Atomization piecesMulti-lumen tubes
Braided cathetersCoil spring tubes and more
Lasers: Infrared, green, and ultraviolet ultrafast lasers; solid-state lasers, fiber lasers.
Micron-scale holes as small as 5 microns in diameter.
Thickness: ＜0.5mm
Drilled hole tolerance: ±1μm
Maximum depth to diameter ratio of 10: 1

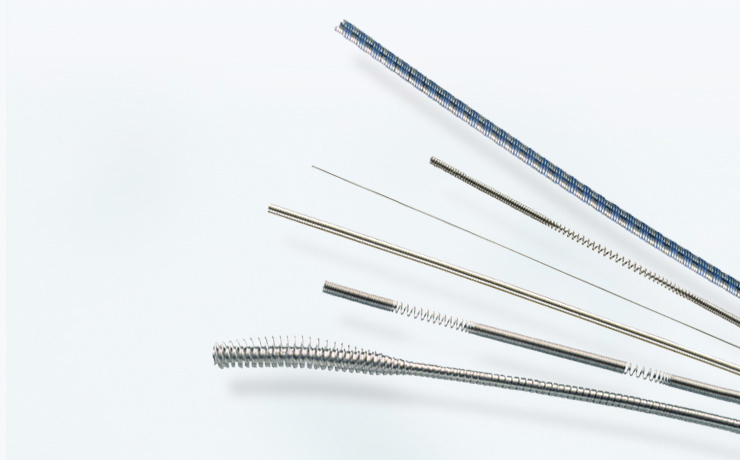

Coil Spring Tubes

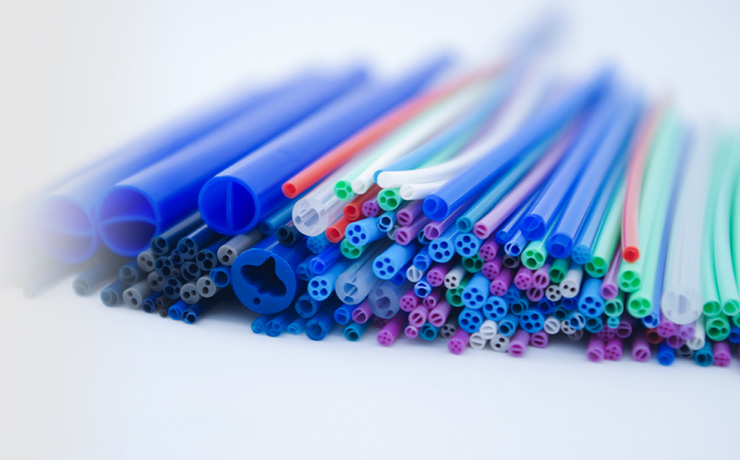

Multi-lumen Tubes

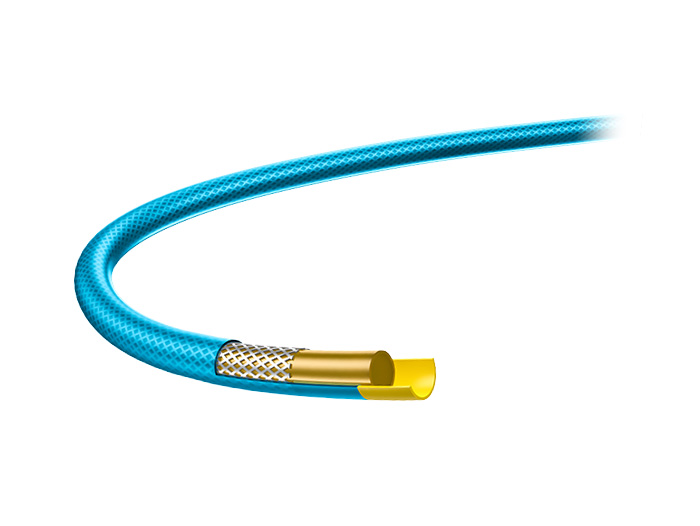

braided catheter

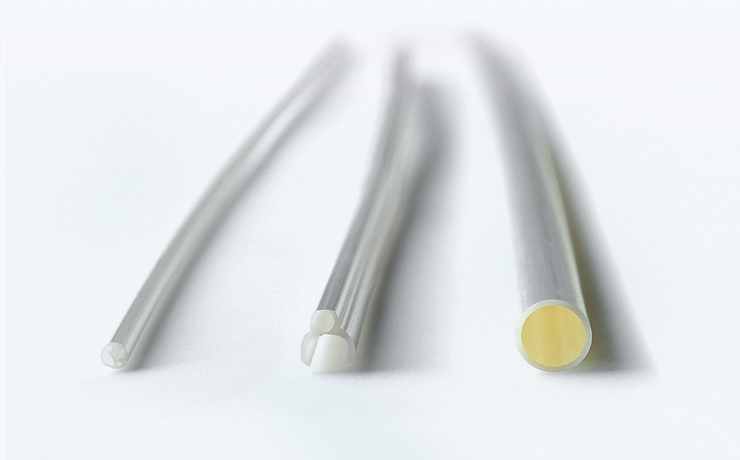

PEEK Tubing
