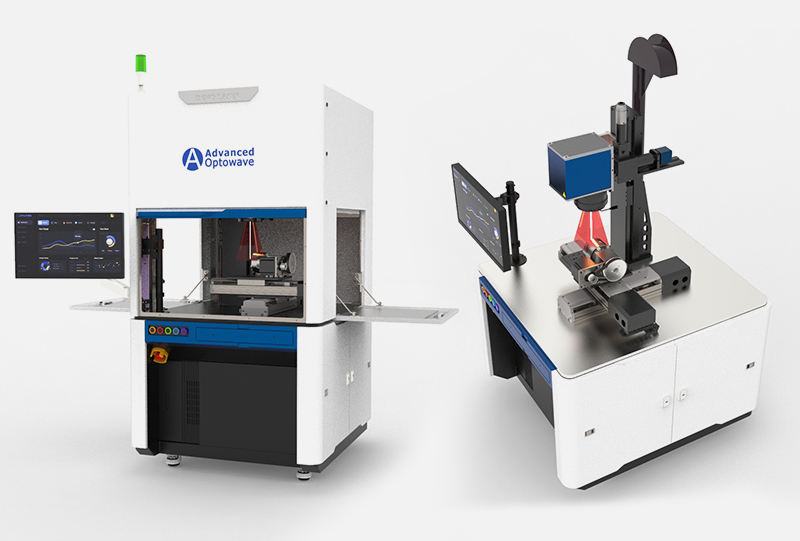

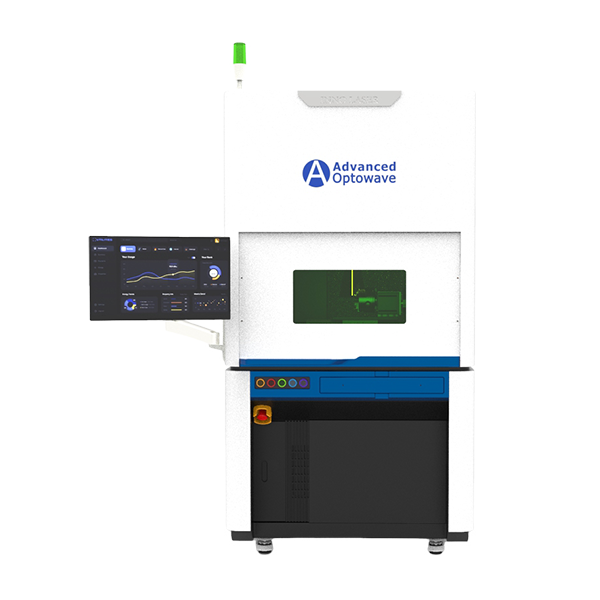

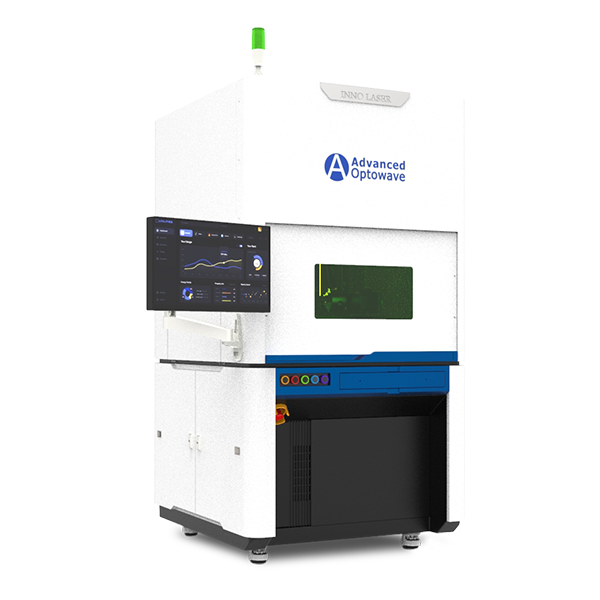

The AOFemto 2000 is a precision visual laser welding system designed for real-time, rapid, and precise welding of micro metal and plastic components. It features optional direct visual observation systems and CCD visual monitoring, allowing for controlled weld spot sizes. This system is primarily used for precision welding of materials such as nickel-titanium, stainless steel, cobalt-chromium, and polymers.
Follow Us
Optional welding spot size: Minimum sizes down to 50 μm
Optional pulse or continuous dual mode
Open workspace compatible with multi-axis configuration
Customized auxiliary fixtures and tooling
Visual & CCD Monitor
Specialized integrated programing software

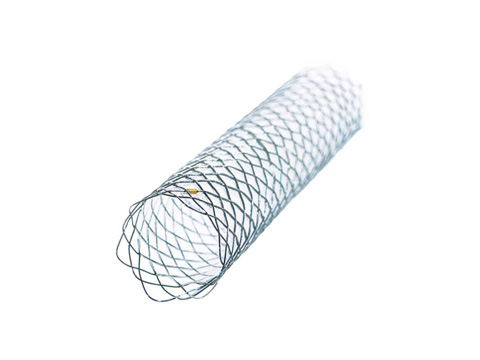

Braided Stents

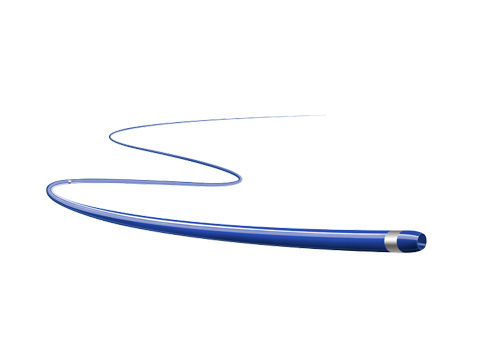

Contrast Wires

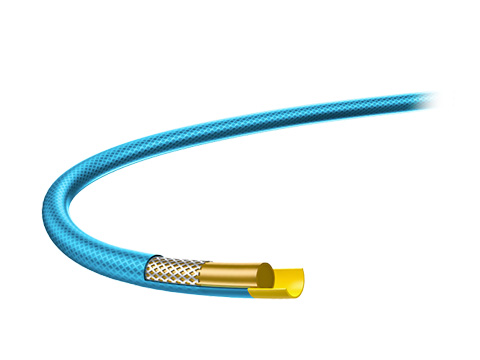

Microcatheters

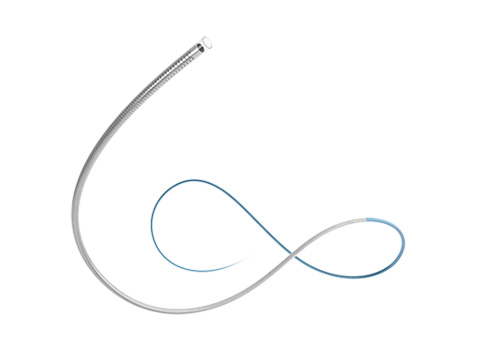

Aspiration Catheters

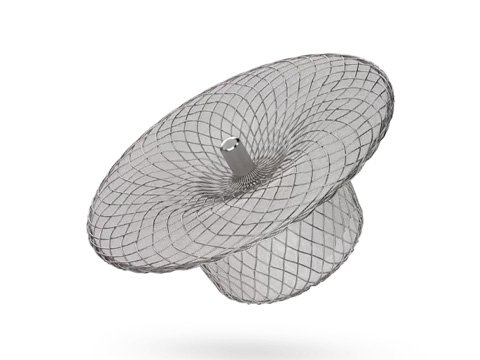

Braided Occluders
| Wavelength | 1070±5nm |
| Mode | Continuous/Pulse |
| Frequency | 1Hz~5000Hz |
| Average power | 150w |
| Pulse width | 0.05ms~50ms |
| Fiber core | 14μm~200μm |
| Processing area | 80mm×80mm~150mm×150mm |
| Processable materials | Stainless steel、Nickel-titanium alloy 、Platinum-iridium alloy, etc. |
| CCD positioning accuracy | ±15um |
| XY axes Repeatability accuracy | ±0.002mm |
| Z-axis positioning accuracy | ±0.005mm |
| Rotary axis | Maximum rotation speed: 200rpm； Jitter：20um |
| Software | Self-developed dedicated welding software |
| Air pressure | 0.5MPa~0.7MPa |
| Power supply | 220V single-phase/50Hz |
| Cooling method | Air-cooled |
| Maximum outer dimensions | 1200mm × 1700mm × 2100mm |
| Stage weight | 750KG |
| Ambient temperature | 23℃±2℃ |
| Ambient humidity | <70% RH without condensation |
Thrombectomy stent
Intracranial expandable stent
Coil embolization
Microcatheter
Microguidewire
Aspiration catheter
Dilatation balloon catheter
Carotid artery stent
Vertebral artery stent
Vena cava filter
Coronary stents
Balloon
Bare metal stent
Drug-coated stent
Biodegradable stent
Drug-coated balloon
Balloon dilatation catheter
Heart valve
Occluder
Atomization piece
3D imaging and mapping catheter
Ablation catheter
Puncture needle
Biopsy forcep
